RL Series
Pixel Pitch: P1.25, P1.5, P1.8, P2, P2.5, P3

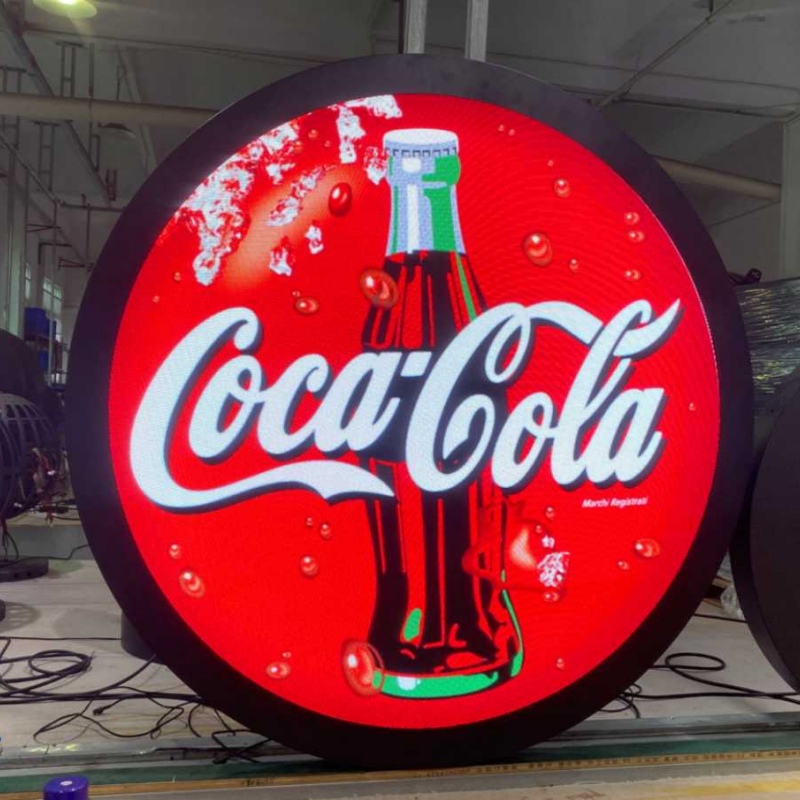

Round LED display, also called circular led display, is perfect for creative design & solution, such as retail advertising, exhibitions, museums, stage background, DJ booth, events, bars and etc. It can be single and double-side solutions. Round LED display panel is tailored for lots of different shapes and sizes. HSC LED can produce customized round led screen for indoor and outdoor applications both.

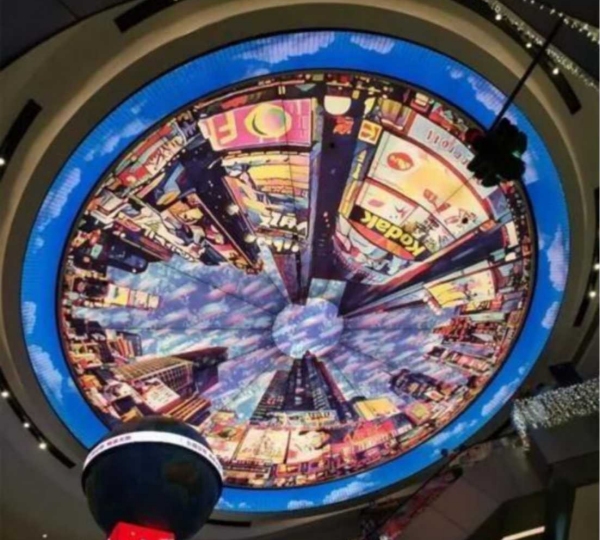

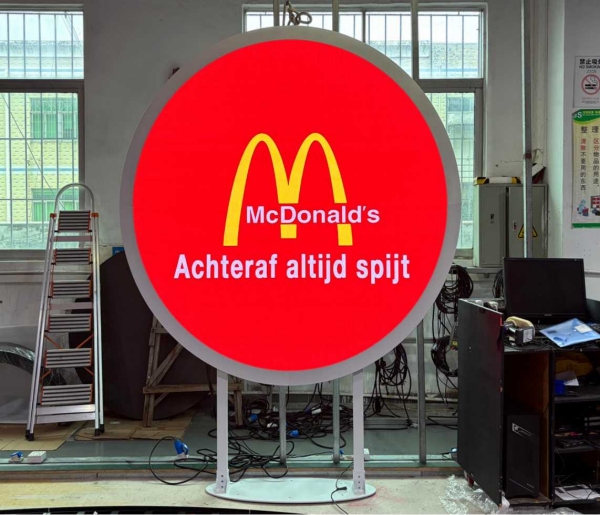

01High Resolution & High Clarity For indoor circular led displays, our smallest pitch is 1.25mm. It's also available for 1.5mm, 1.8mm, 2mm, 2.5mm and 3mm. For outdoor circular led screens, it's available for 3mm, 5mm and 8mm. |  |

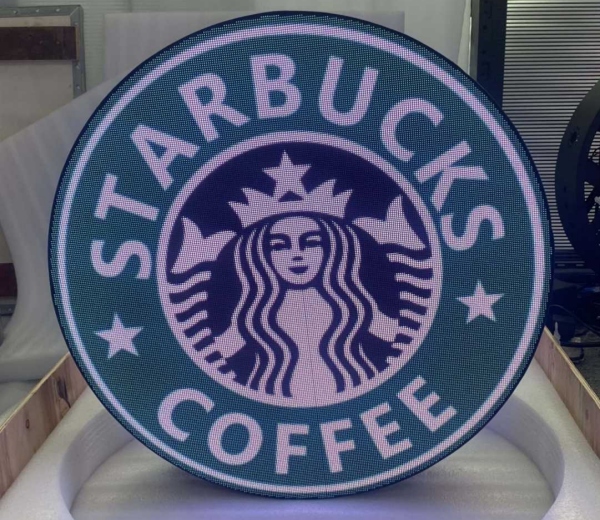

 | 02Unique Design for Magic & Fantasy Effect Round led video display has special and creative shapes. It's magic decoration and effect with such round led video screen. Circular led display has excellent visual performance for retail advertising and customer's logo. |

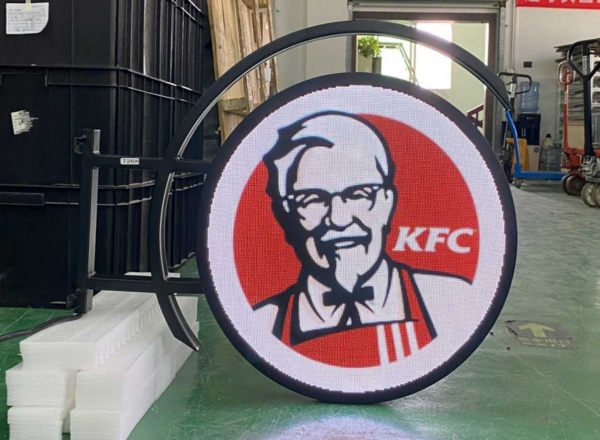

03Creative Design & Custom Size Round shape led display is working for custom solution, such as special shape and sizes. HSC LED makes your ideas into reality with our creative round led screen panel. It's available for any custom sizes and pitches with our circular led display. |  |

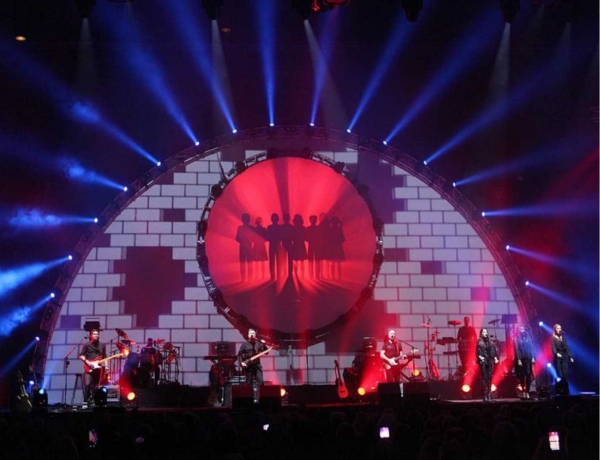

 | 04Easy Control & User-friendly Software Synchronous & asynchronous mode Live broadcasting & autoplay without PC HDMI controller is preferred for live events and bigger sizes; WiFi control is perfect for small circle led screens Round led display screen can work 24/7 hours |

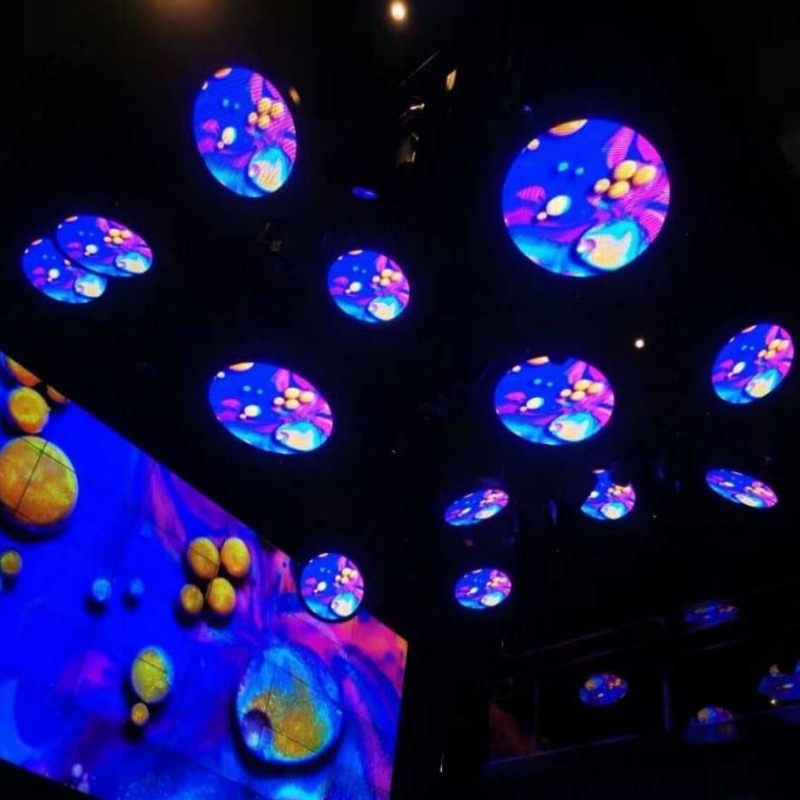

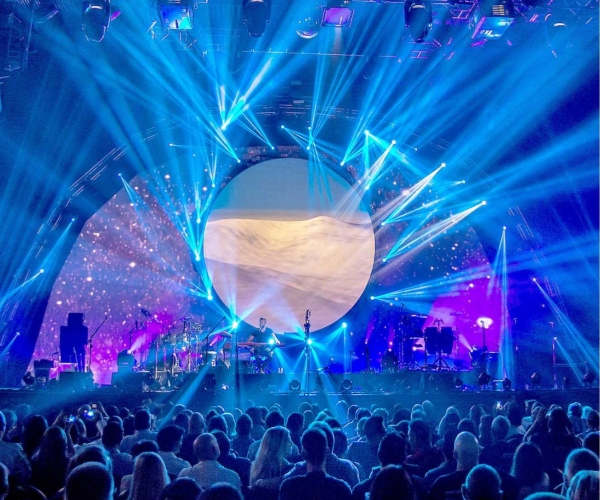

05Broad Applications Round led video display is perfect for all kinds of events, shopping mall, front desk, company decoration and etc. It's also perfect for club and stage's lighting effect with round led screen. With small sizes circular led display, it's perfect for showing company's logos.
|  |

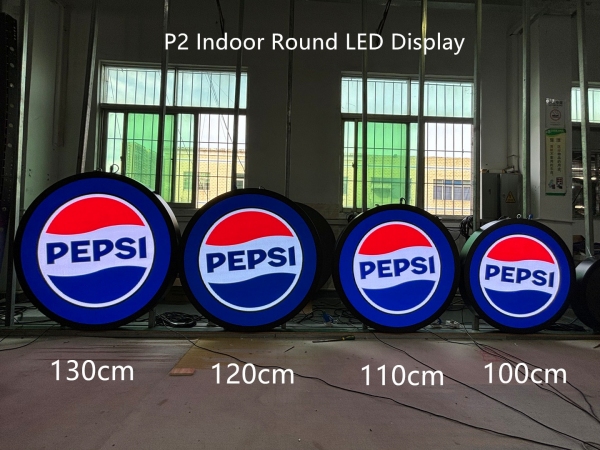

 | 06Customized Sizes For indoor round led display, it's available for 500mm, 512mm, 600mm, 700mm, 800mm, 1000mm, or bigger customized sizes; For outdoor round led screen, it's available for 1m, 1.2m, 1.5m, 1.8m, 2m, 2.5m, 3m or bigger customized sizes. |

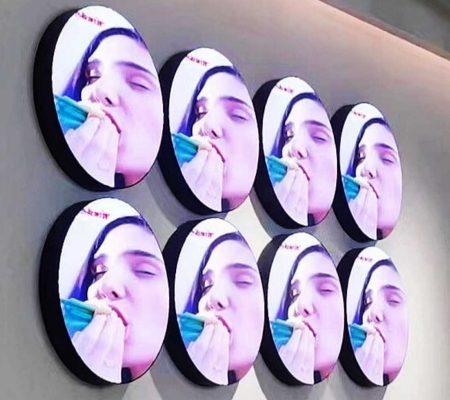

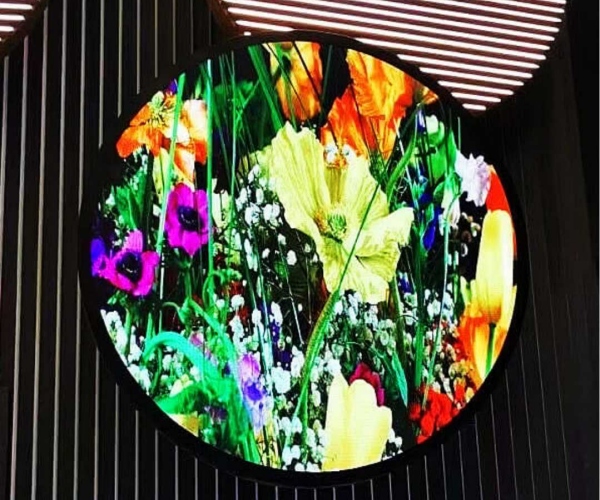

07Flexible Installations Our circular led display can be hanging and wall-mounted solutions. For hanging, it can be hang with hooks on the top or back side. For wall-mounted, it can reserve holes on the back side and mount on the wall with screws. |  |

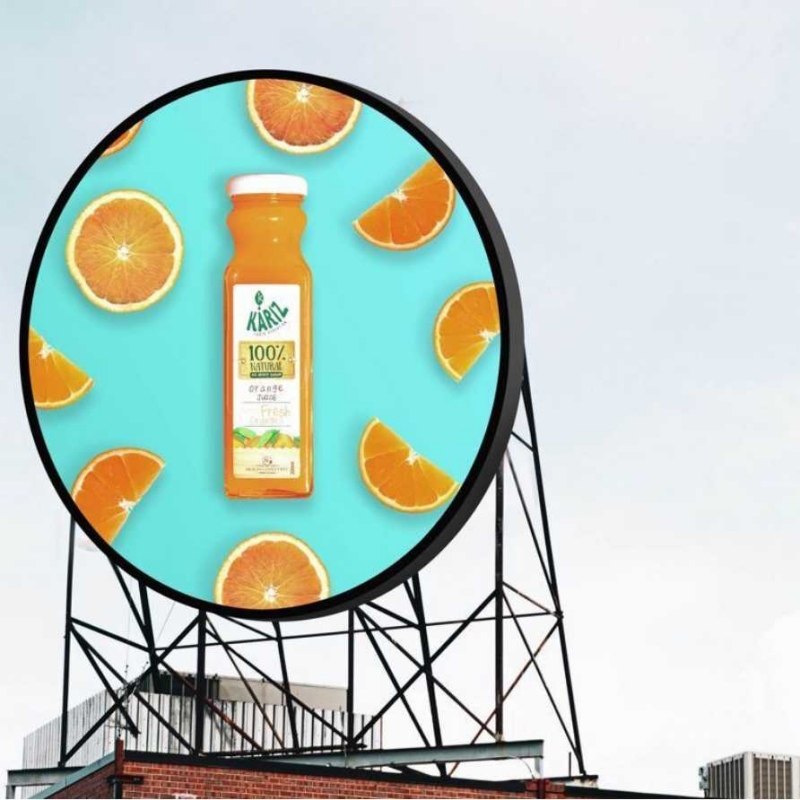

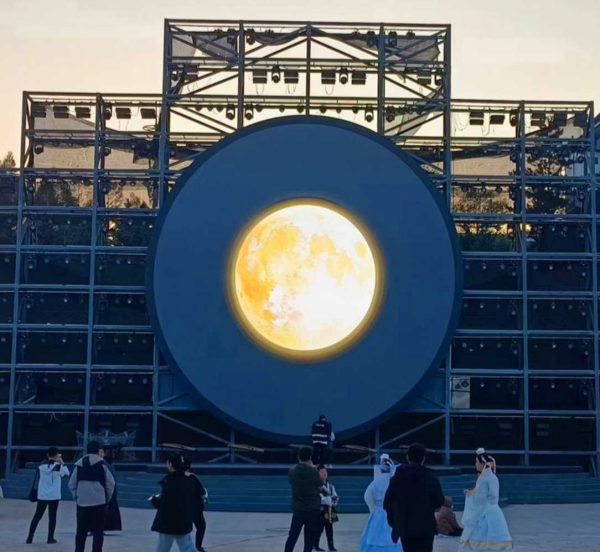

 | 08Outdoor Round LED Display Thanks for our great team and latest technology, we have developed circular led display for outdoor applications. It's fully waterproof and IP65 protection. It can be 3mm, 5mm and 8mm for customized sizes. Durable for outdoor applications. |

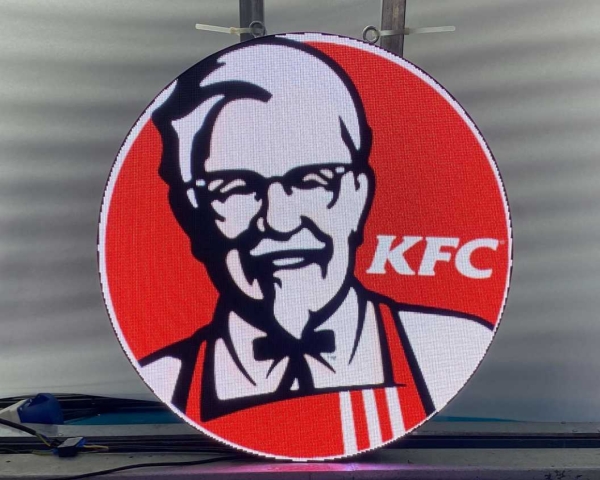

09Single or Double-Sided Circle LED Display It can be single or double-sided for our circle led screens with customized sizes. Especially for our small sizes logo led screen, such as 500mm, 512mm, 560mm, 580mm, 700mm and etc. |  |
 | 10Plug & Play Solution It's plug & play solution for our circle led displays. Especially for small sizes, such as 500mm, 512mm, 580mm, 600mm, 700mm and so on. No need for additional configuration. It can display preset videos, photos, animations and texts. |
| Model | P2.5 | P3 | P4 |
| Pixel Pitch | 2.5mm | 3mm | 4mm |
| LED Type | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 Pixels/㎡ | 111,111 Pixel/㎡ | 62,500 Pixels/㎡ |
| Diameter | 500mm | 1030mm | 512mm |
| Cabinet Weight | 10kg | 30kg | 4.8kg |
| Brightness | 800nits | 1000nits | 1000nits |
| Viewing Angle | H: 160°; V: 160° | H: 160°; V: 160° | H: 160°; V: 160° |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V |
| Max. Power | 800W/㎡ | 800W/㎡ | 550W/㎡ |
| Ave. Power | 280W/㎡ | 280W/㎡ | 200W/㎡ |
| Working Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
| Working Humidity | 10%—90%RH | 10%—90%RH | 10%—90%RH |
| Environment | Indoor | Indoor | Indoor |
Q: What kind of round led display do you have?
A: We currently have indoor and outdoor circular led screen. It can be any custom sizes.
Q: Can you make fine pitch round led screen?
A: Yes, we already have developed models for fine pitch, such as 1.8mm, 1.6mm, 1.5mm.
Q: What's your warranty and services?
A: We offer 2 years warranty for free technical and repair services with our circular led display. It also can be extended warranty service if you want.
 |  |  |
HSC LED has provided integrated solutions with professional teams more than 12 years in LED display industry.
