LED Pillar

LP Series

Models: 1.25mm, 1.5mm, 1.8mm, 2mm

320×960mm

320×1120mm

320×1280mm

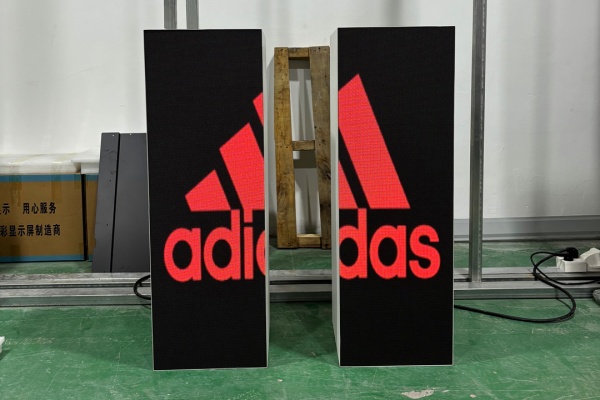

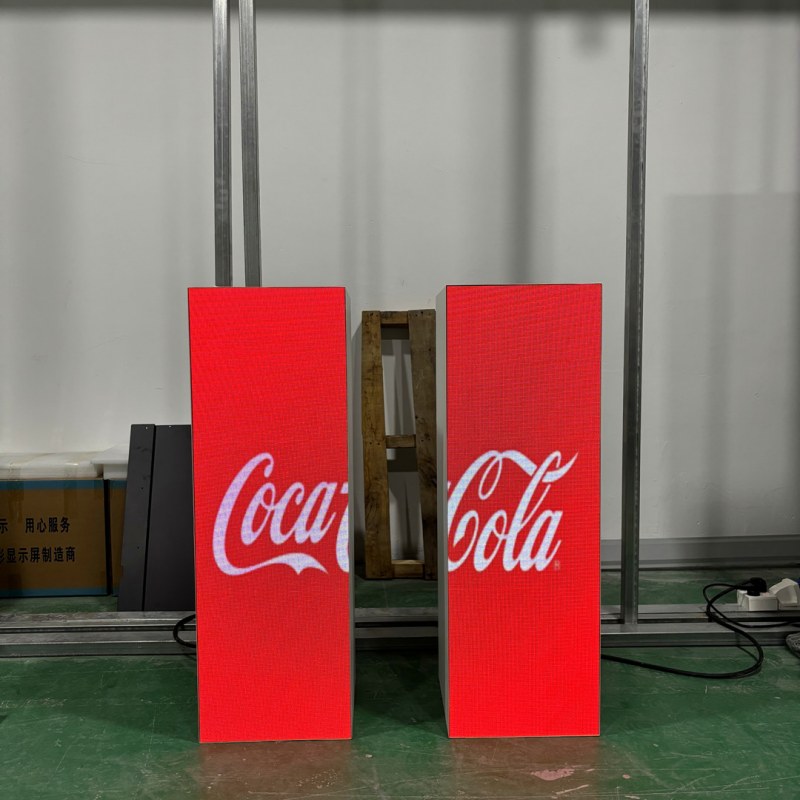

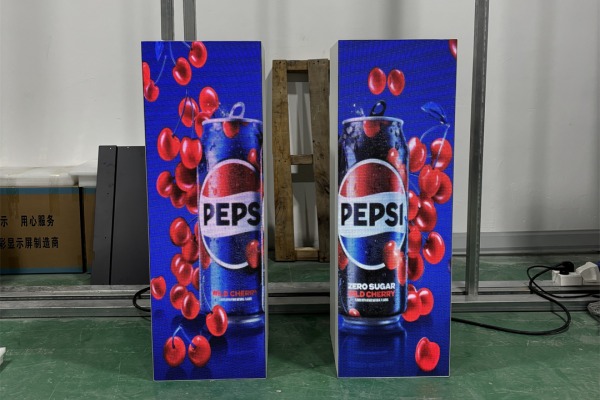

LED Pillar, also called LED plinth, smart LED table, and LED counter display, is a new kind of retail displays, which is perfect for retail advertising and exhibitions. It can be 1, 2, 3 or 4 sided led screens which can display same or different videos on each sided. It also can be one big screen.

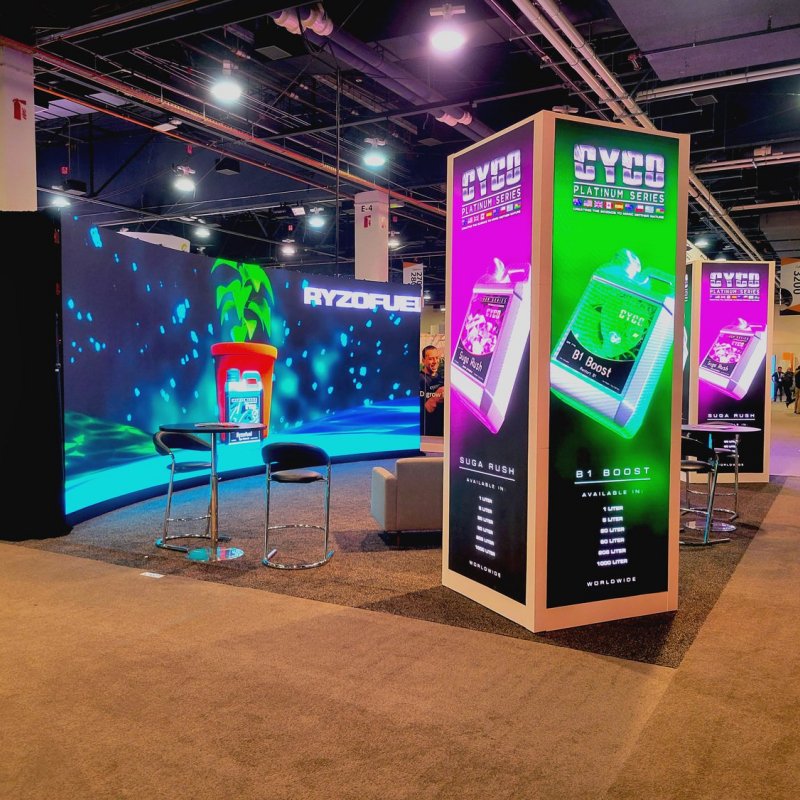

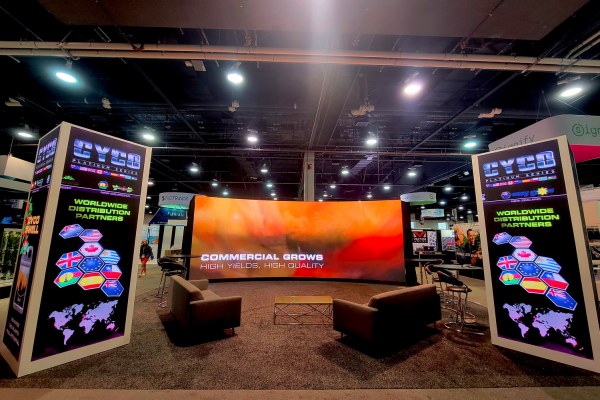

LED plinth is equipped with high resolution & quality led panels. It's designed for retail stores, exhibitions, trade shows, fairs and any portable display applications.

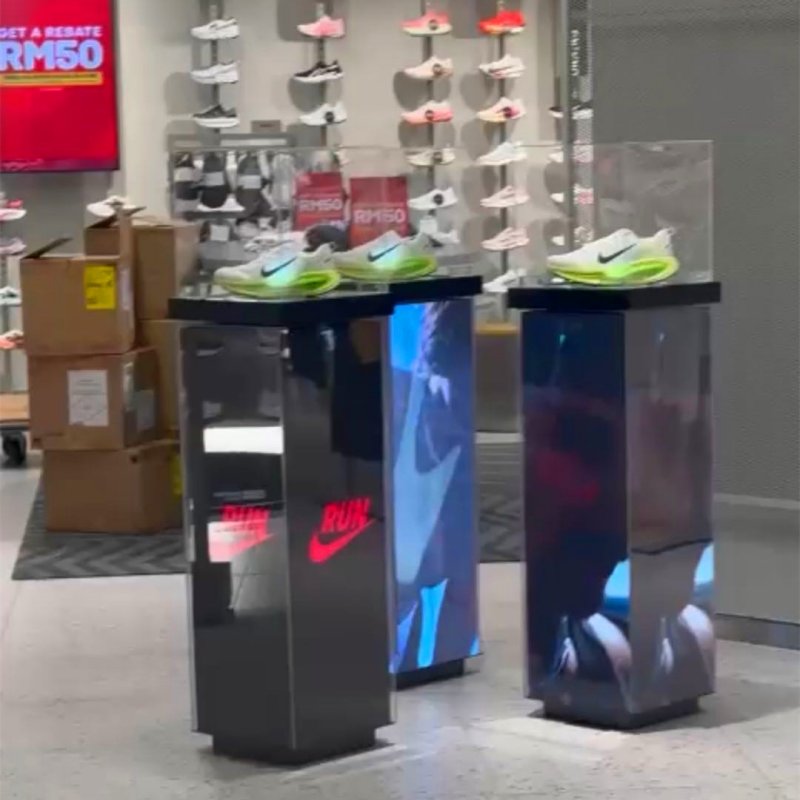

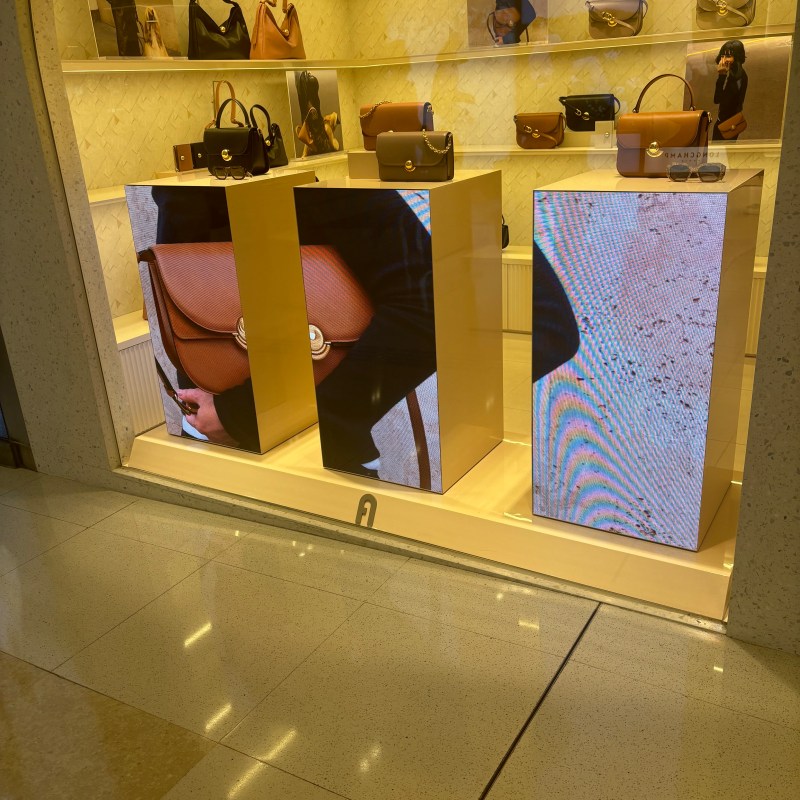

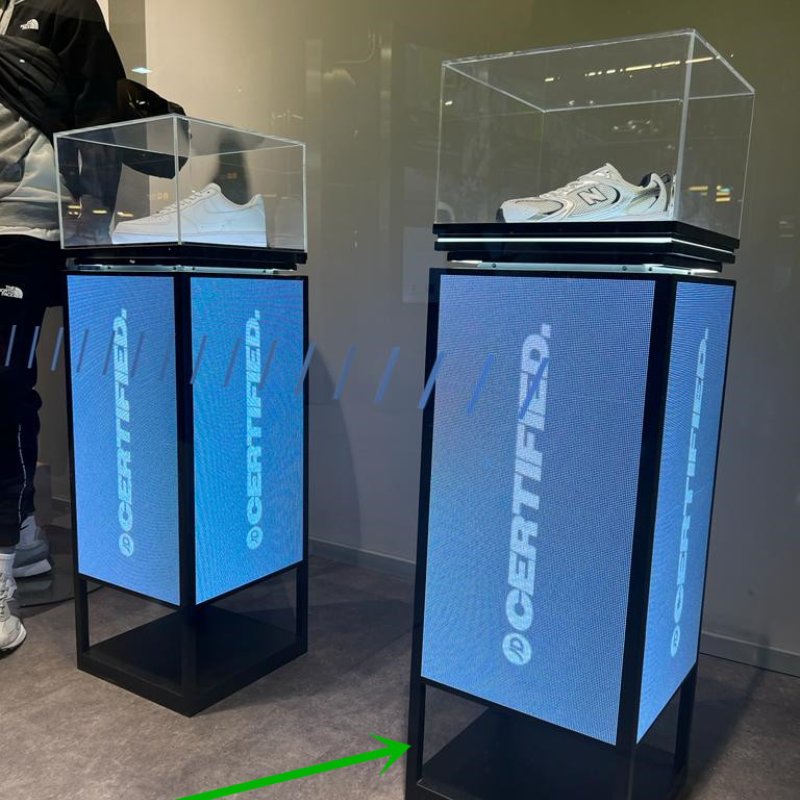

LED counter displays also can show your products on the top. It maximizes exposures for your brand recognition.

Features

	01 Programmable LED Pillar Comparing to static & printing banners, our LED pillar can display dynamic videos, photos, animations and texts. No need for changing banners every time, it's a cost and time-saving advertising solutions.
02 Sleek & Lightweight Design The sleek design makes it looks simple but aesthetic. Each piece is only 16kg for extremely light-weight. It can be transported easily to different venues, trade shows, fairs, restaurants, jewelry stores. The wheels on bottom also can be added.
	03 Customized Size & Side LED Table It can be custom sizes and sides with customer's request for our LED counter displays. 320960mm is the most popular size. It also can be 640960mm or 640*1120mm. Single, double, three or four sided is available without limitation.
04 Plug & Play Solution Our LED plinth is an integrated solution for software and hardware. It's Plug & Play solution without extra processor or controller. Even end-users can manage their contents..

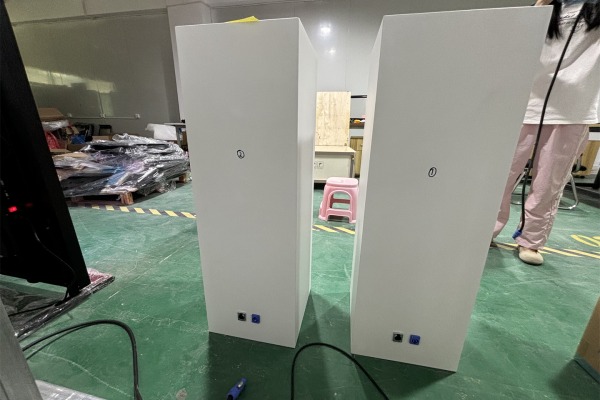

	05 Easy Replacement & Maintenance It's freestanding design and no need for extra installation. Our smart LED table is front service design. It can be easily replaced and repaired with suction cup.
06 LAN/WiFi Control The contents can be uploaded by computer software and App. It's WiFi wireless control and no wiring. With 4G module, you also can upload contents remotely. We both offer video manuals for software and App. HSC LED also provides full technical supports for warranty and after-sale servcies.

Parameter

Model name	LP2
Pixel Pitch (mm)	2mm
Pixel Density (dot/m2)	160,000
LED Type	SMD1515
Module Size (mm)	320×160
Horizontal Viewing Angle (Deg)	140
Vertical Viewing Angle (Deg)	140
Brightness (nit)	800
Grey Scale	16 bit
Refresh Rate (Hz)	3840
Maximum Power Consumption	200
Average Power Consumption	60
Cabinet Size(mm)	320*960mm	640*960mm	320*1120mm
Scan	1/40 Scan
Input Voltage (V)	110-220V
Waterproof Level	IP31
Application	Indoor
