CS Series
CS2.5, CS4, CS4.6

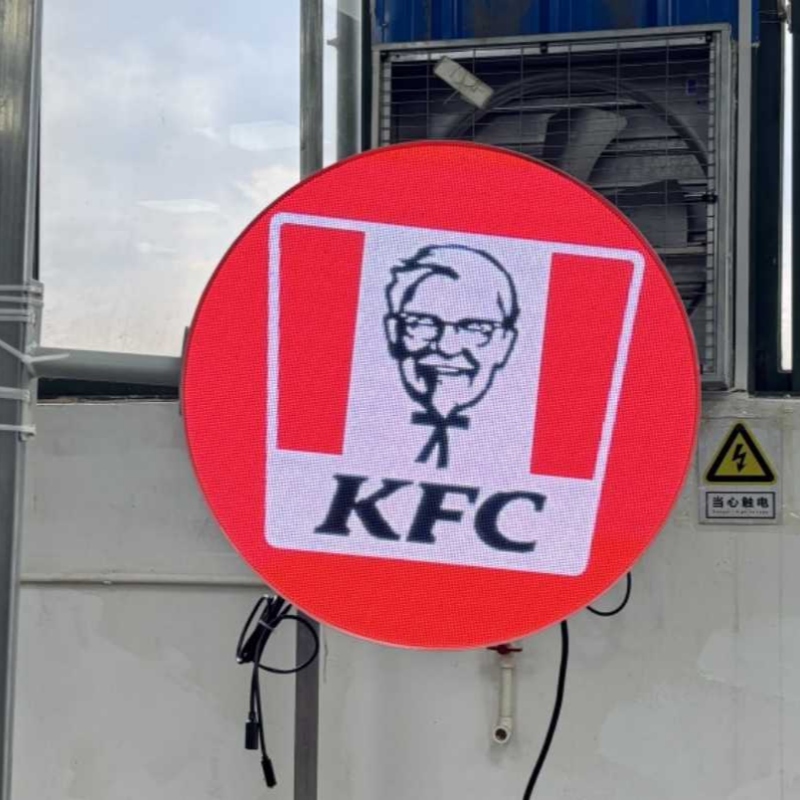

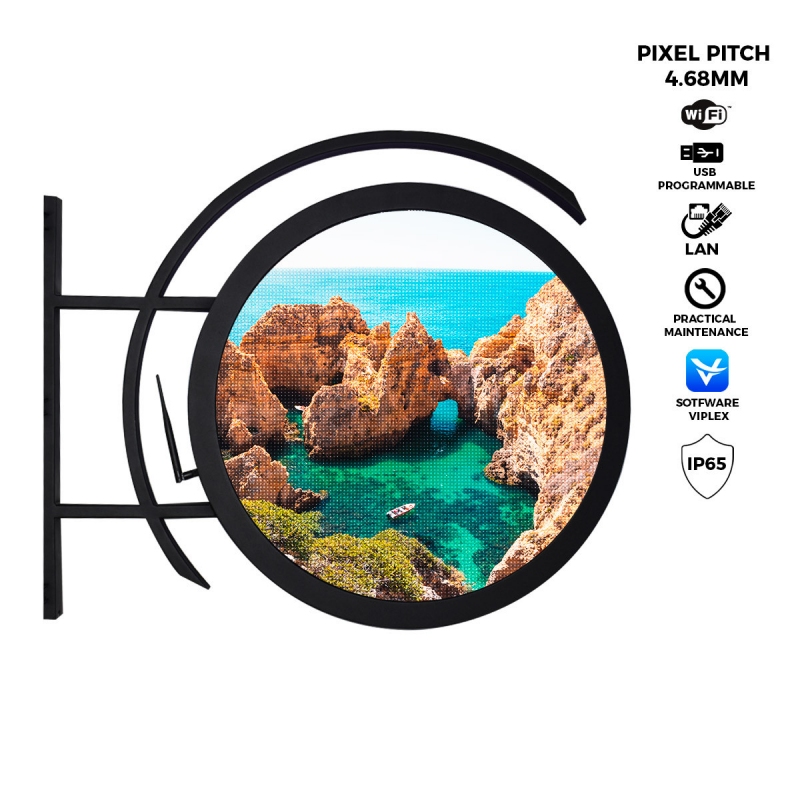

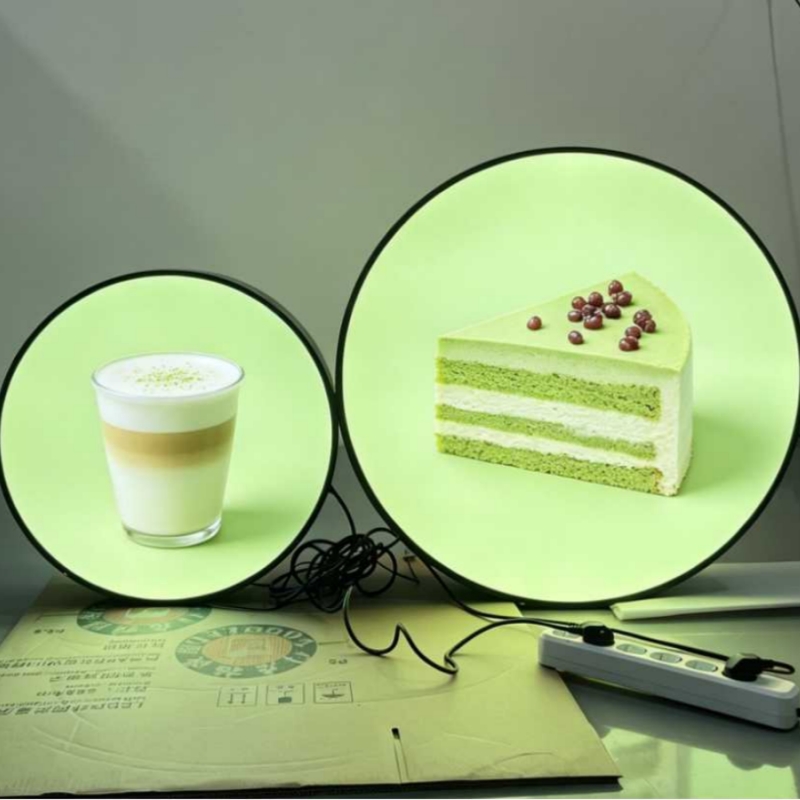

Circle led display is a round shape irregular led screen requested by some special creative designs. Comparing to traditional lightbox, Circle LED logo sign is perfect for retail digital advertising and It will make your store and logo more attractive with unique shape. Here we offer double sided circle led display screen with P2.5, P4 and P5 pixel pitch. All the models is high bright and waterproof for outdoor applications.

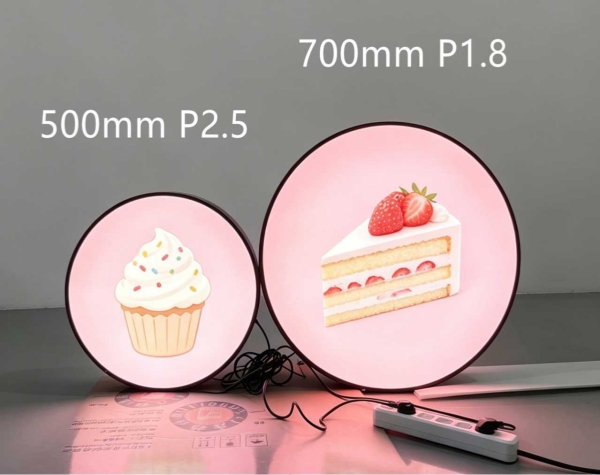

 | High Clarity & Resolution P2.5 model is the highest resolution and best visual quality P4 model is better price and good resolution P5 is best price among all models 2.5mm for 500mm diameter 4mm for 600mm diameter 5mm for 500mm diameter |

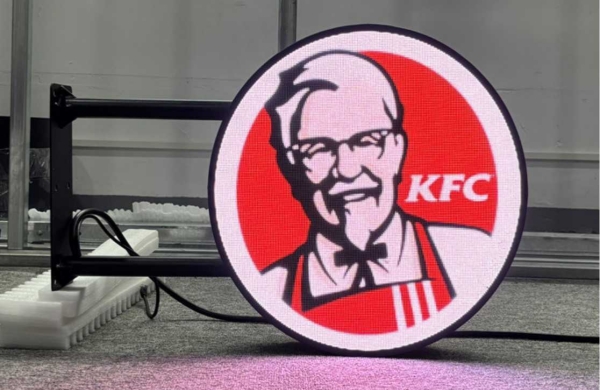

High Bright & Waterproof Circle led sign could reach up to 4500nits high brightness. Clear crystal image even under direct sunlight. It's also IP65 waterproof protection for our led logo sign. Durable for outdoor applications. |  |

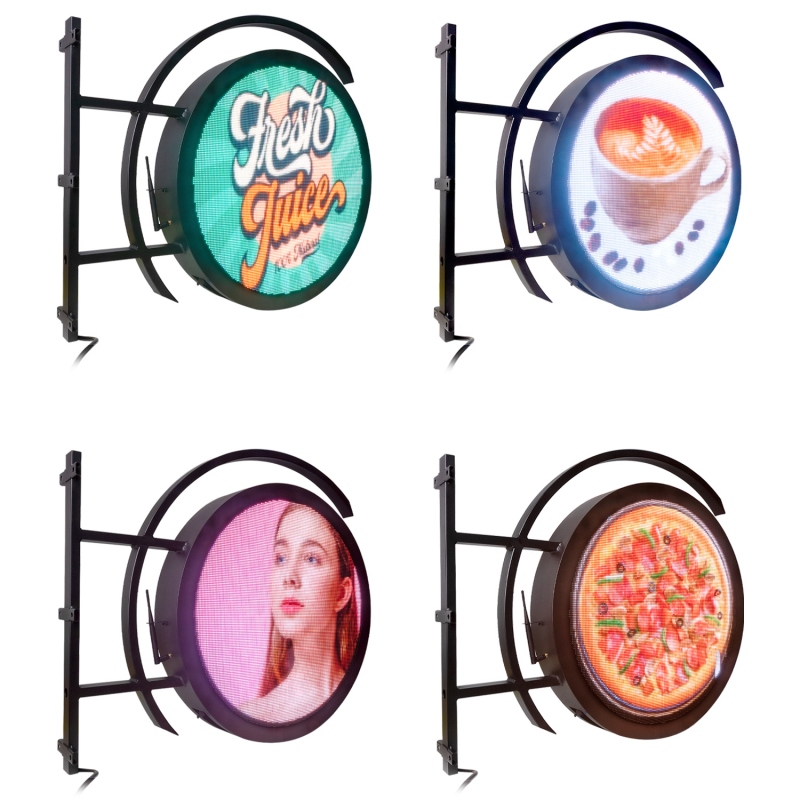

 | Dynamic Digital Circle LED Screen HSC LED offers circle led sign which can display videos, photos, animations and texts. Comparing to tradional lightbox, it's more attractive and vivid with dynamic digital circle led display. |

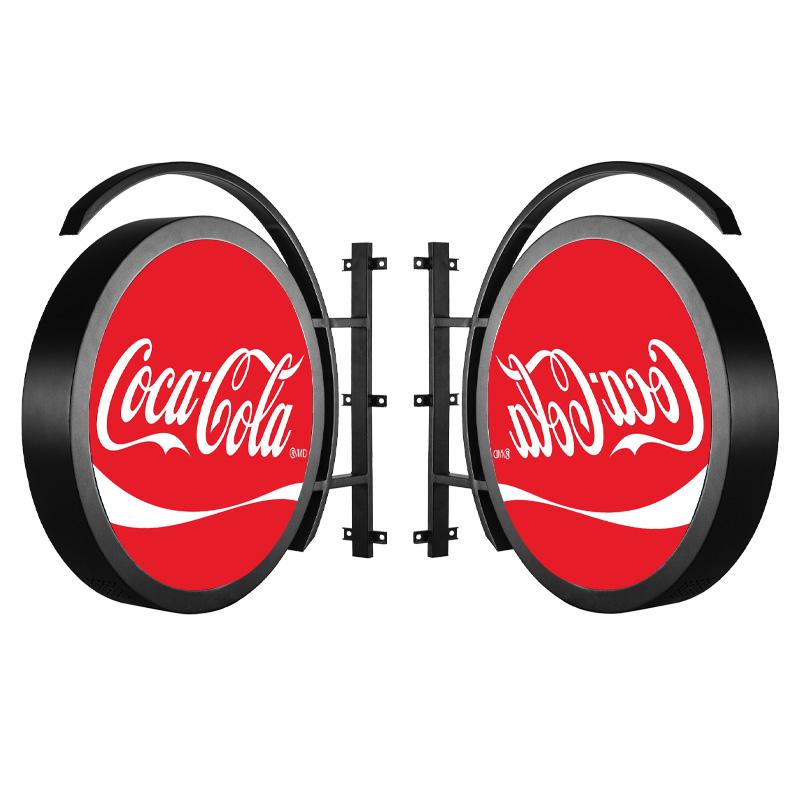

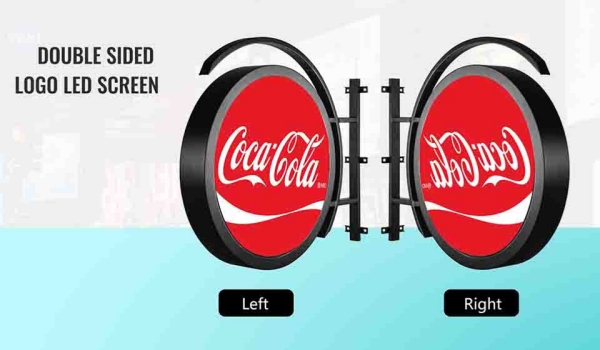

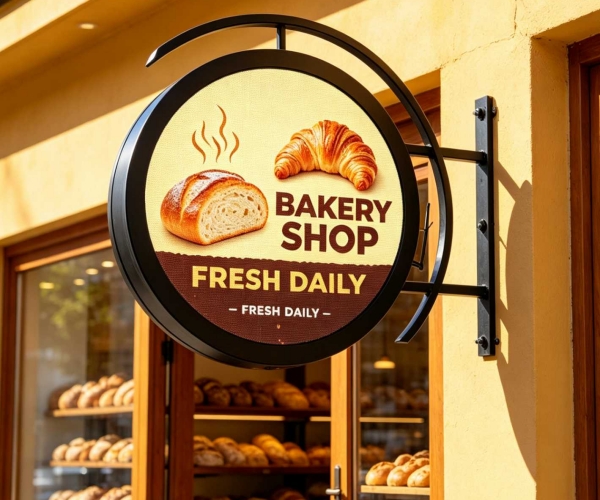

Dual-Sided Design & Round Shape Creative design with single & double side round shape, which makes led logo sign more attractive and impressive, so it is a perfect choice for outdoor advertising. The diameter of circle led sign is 60cm, which is suitable for most stores or shops. The product can be also used as an artistic decoration, clock, and date. |  |
 | Integrated Design Circle LED Sign It's a complete and integrated design for logo led display. All accessories and controller is included. No need extra device or cables. |

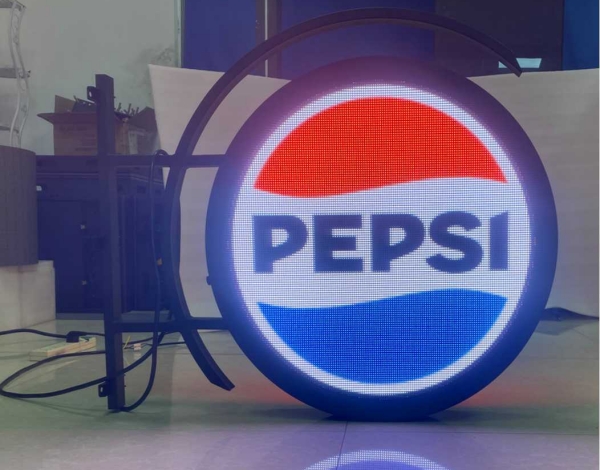

Plug & Play Solution It's a plug and play solution for our logo led screen. No need for extra configuration Extremely easier and simpler for end-users It can display preset videos, photos and texts. |  |

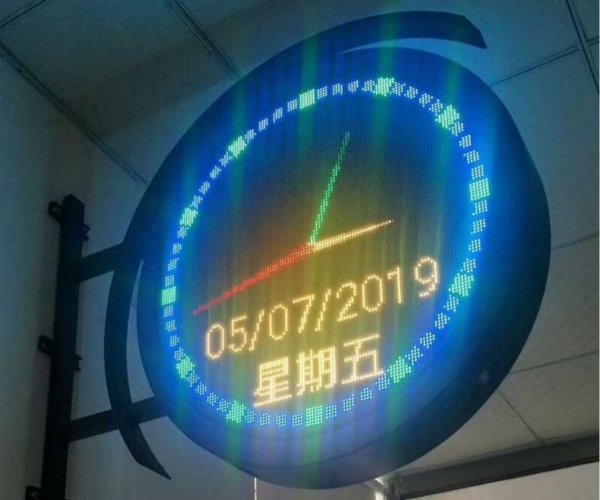

 | Fast Installation Our circle led display has a thin frame (10cm) and light wight (8.5KG) that enable a fast installation. It has support structure for quick wall-mounted with expansion screws. It also can be hanging installation with hooks on the top. Our team also provides installation manual for led logo sign |

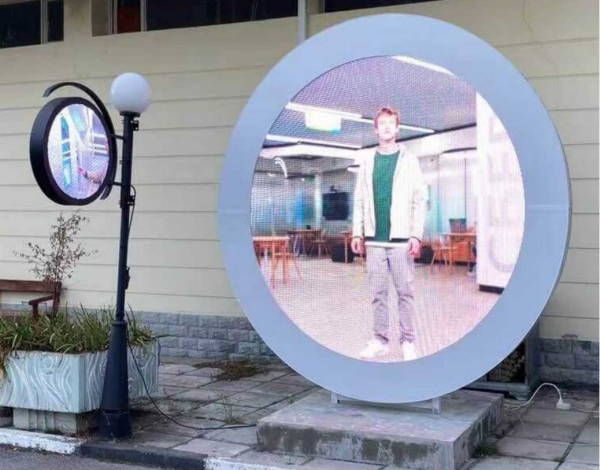

Customized Sizes & Pitches We can offer customized sizes for our circle led screen, such as 1m, 1.2m, 1.5m, 1.8m, 2m and more. P3, P5 and P8 models is also available according to customer's budget and applications. Our circle led sign both can be single and double sided solutions. |  |

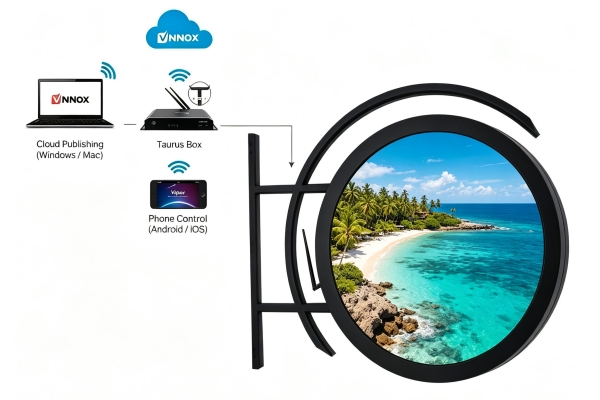

 | Easy Control LED logo sign is available to be controlled by App and computer software. All contents can be uploaded by using WiFi. |
Long Lifespan & Energy-Saving The LEDs of circle led display can last for 100,000 hours which ensure the long lifespan. And it's also energy-saving solution with 120W consumption per set. |  |
| Pixel Pitch | 2.5mm | 4mm | 5mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 160,000 dots/m2 | 60,000 dots/m2 | 40,000 dots/m2 |
| Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan |
| Max Consumption | 400W | 400W | 300W |
| Average Consumption | 120W | 120W | 90W |
| Frame Size | Diameter: 50cm | Diameter: 60cm | Diameter: 50cm |
| Frame Design | Dual-Side | Dual-Side | Dual-Side |
| IP Grade | IP65 for both sides | IP65 for both sides | IP65 for both sides |
| Brightness | 5000nits | 5000nits | 5000nits |
| Operating Temperature | ﹣25℃～60℃ | ﹣25℃～60℃ | ﹣25℃～60℃ |
| Operating Humidity | 10%～95% | 10%～95% | 10%～95% |
| Operating System | Windows/IOS/Android | Windows/IOS/Android | Windows/IOS/Android |
| Defects Rate | ≤0.00001 | ≤0.00001 | ≤0.00001 |
| Viewing Angle | Horizontal 160° Vertical 120° | Horizontal 160° Vertical 120° | Horizontal 160° Vertical 120° |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
| Control Methord | WiFi/USB | WiFi/USB | WiFi/USB |
| Net Weight | 9.5kg | 9.5kg | 9.5kg |
| Package: | 93x79x15cm | 93x79x15cm | 93x79x15cm |
Q: Does circular led display play videos or only images?
A: Yes, our circle led display can display videos, photos, texts and etc.
Q: What's the control option for circular led display?
A: It's WiFi & USB control for our circle led screen. Plug & Play solution via USB disk. We also can choose the controller with HDMI option if customers want it.
Q: Is it possible for remote control?
A: Yes, we can add 4G controller if you want to control it remotely. Then you can send all programs via cloud on the platform.
